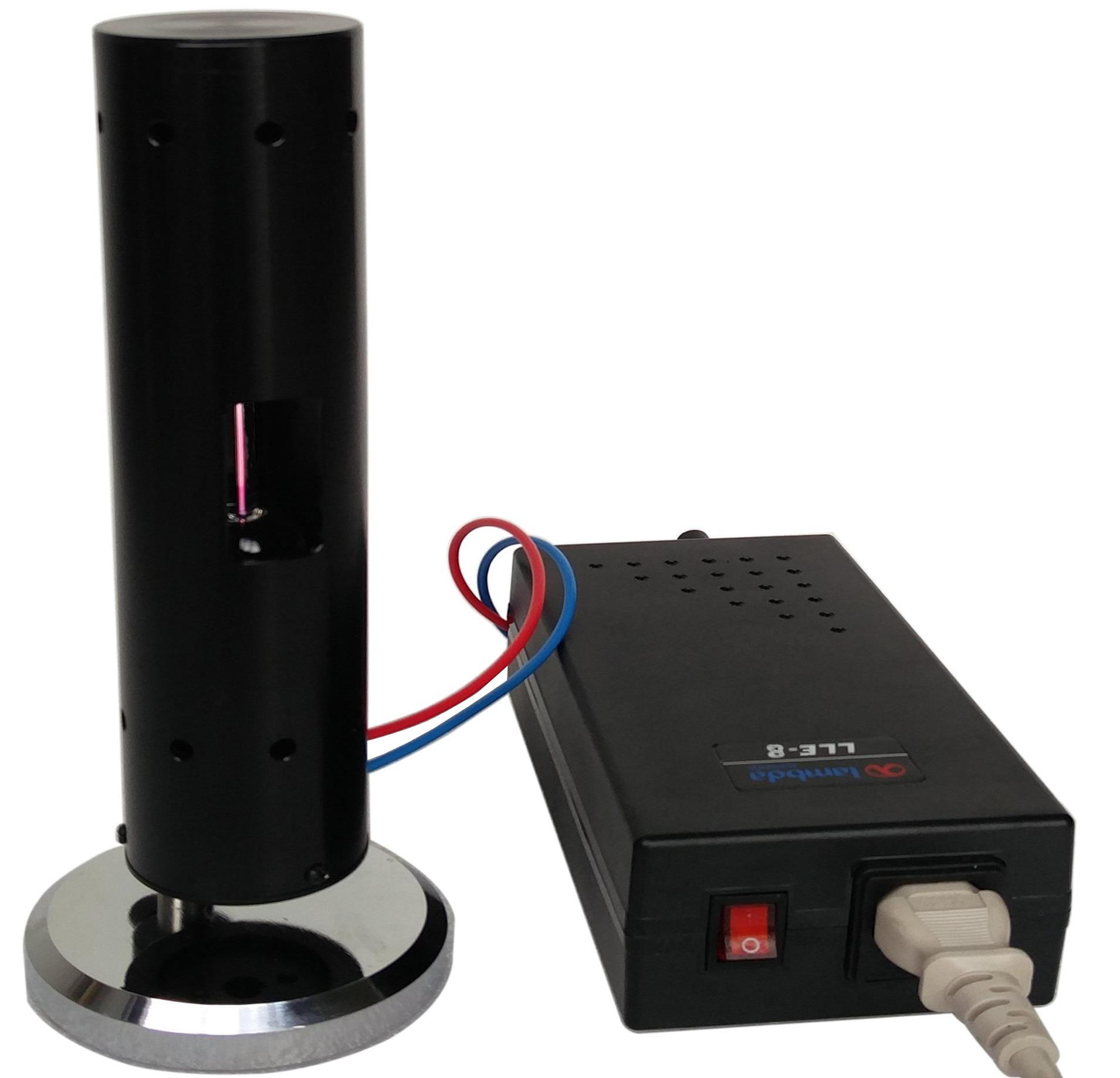

LLE-8 Hydrogen-Deuterium Lamp

LLE-8 Hydrogen-Deuterium Lamp

Features

  • Hydrogen-Deuterium spectrum (roughly 2:1 spectral peak ratio)

  • Ideal lamp for Balmer series experiment

  • Designed for continuous operation

  • Height of lamp adjustable with post/post holder





Introduction


The LLE-8 Hydrogen-Deuterium Lamp is a gas discharge light source designed for use in wavelength calibration and spectroscopic experiments in academic and research settings. It is particularly valuable for conducting Balmer series experiments, which are used to investigate the hydrogen atom's emission spectrum.


Compared to traditional hydrogen arc lamps, the LLE-8 Hydrogen-Deuterium Lamp offers superior stability and intensity, making it more reliable for continuous operation without the need for frequent shutdowns. This makes it a highly practical option for spectrometer calibrations and various other optical experiments.


Specifications

DescriptionSpecifications
Hydrogen Spectrum (nm)410.18, 434.05, 486.13, 656.28
Deuterium Spectrum (nm)410.07, 433.93, 486.01, 656.11
Spectral Peak Ratio (Hydrogen/Deuterium)~ 2:1
Housing Dimensionslength 220 mm, diameter 50 mm
Windows (two opposite windows)18 mm x 40 mm, centred at half height of the housing
Housing Support range of height adjustment 100 mm, base thickness 15 mm


Part List


DescriptionQty
Bulb1
Housing1
Power Supply1


H-D spectrum-656 nm.jpg

Measured HD spectrum around 656 nm

H-D spectrum-486 nm.jpg

Measured HD spectrum around 486 nm

H-D spectrum-434 nm.jpg

Measured HD spectrum around 434 nm

H-D spectrum-410 nm.jpg

Measured HD spectrum around 410 nm

H-D lamp spectrum.jpg

Measured HD spectrum (400~660 nm)


(Click a graph to enlarge)
